Skriv en anmeldelseToyota JZ 1JZ 2JZ - GS5-39DZ Getrag 420
Adapter kit enables users connection of Toyota JZ engine series with very durable and easy to buy BMW gearbox. It is an ideal solution for motorsport.
Advantages of PMC sets:
The kit warranties ideal alignment of engine and gearbox (0,01mm)

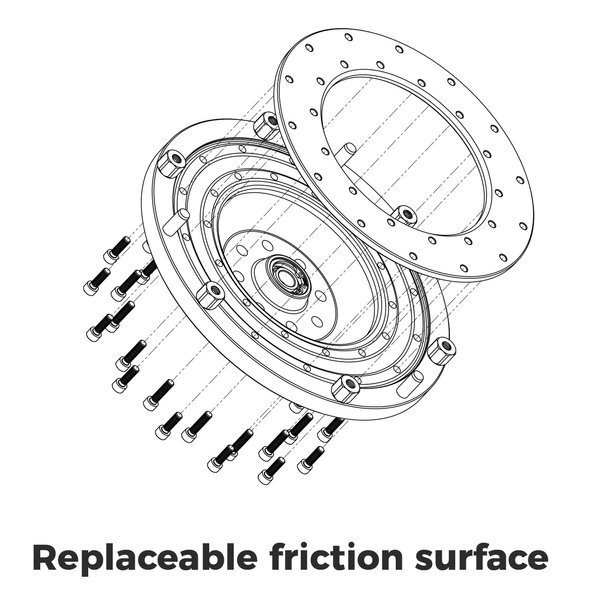

Ultra-Lightweight aluminum custom flywheel includes replaceable iron cast friction surface,

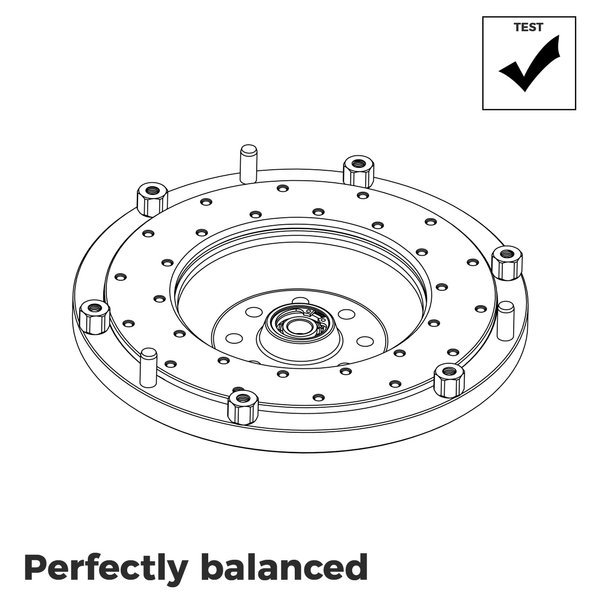

each flywheel is carefully checked and precisely balanced before shipping.
Original automatic transmission ring gear (flexplate) for Toyota JZ (Toyota OEM OEM 32101-30090 / 32101-22050) is required to install PMC custom flywheel. The original Toyota JZ started is used with the kit in the same position.

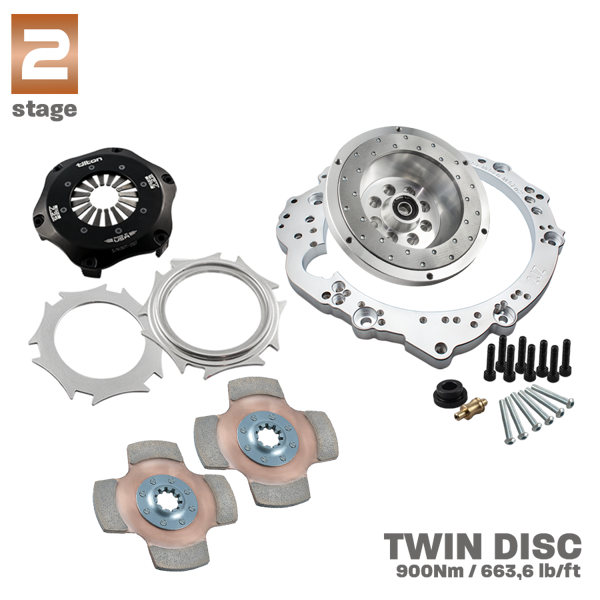

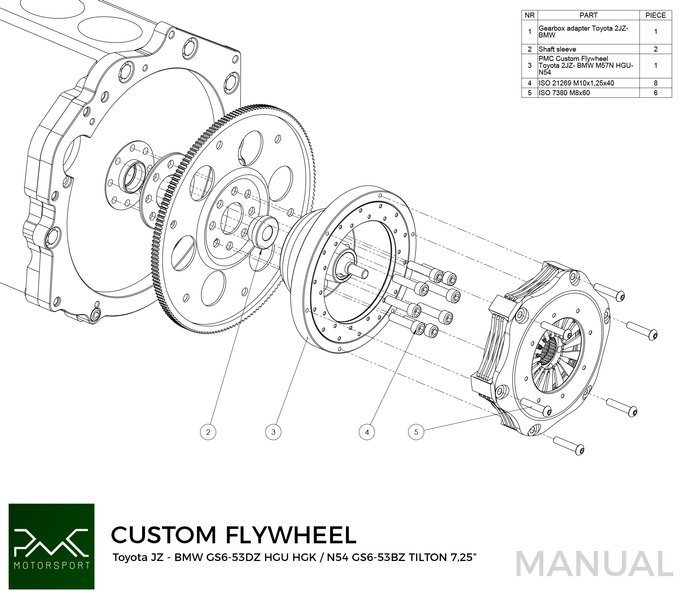

Set includes:

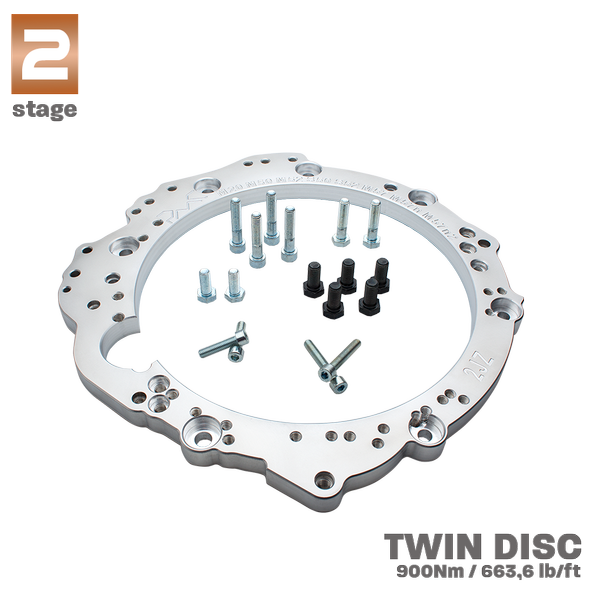

Aluminum gearbox adapter plate

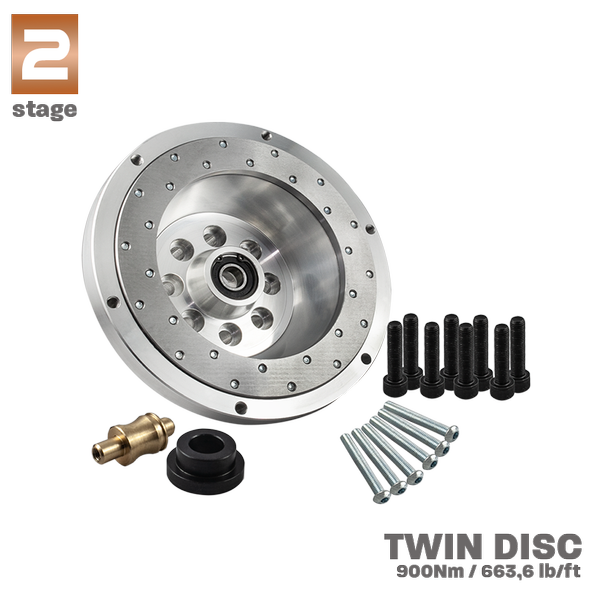

Custom flywheel
Necessary assembly screws

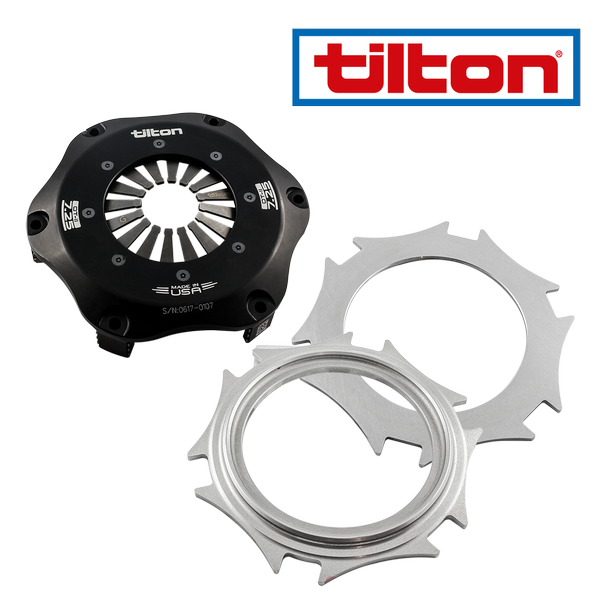

Tilton Engineering® OT-II Cerametallic Pressure Plate 7,25" 66-302HGG (Dual disc)

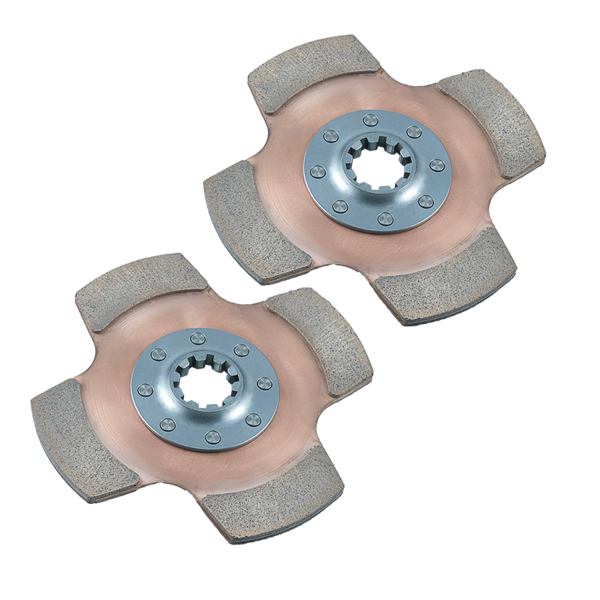

PMC Motorsport sintered discs pack 7,25"184mm 28x35-10N (2disc)
Engine list:
Toyota 1JZ / 1JZ-FSE / 1JZ-GE / 1JZ-GTE (non VVT-i / VVT-i version)
Toyota 2JZ / 2JZ-FSE / 2JZ-GE / 2JZ-GTE (non VVT-i / VVT-i version)
Gearbox list:
BMW S54 E46 M3 6-speed GETRAG 420 TBAI 226.0.0440.97
BMW M57 Diesel 5-speed GS5-39DZ
BMW E39 530D 525D
BMW E46 330D 1434256 ZF 1065401011
Additional information:
Loosen the rear water hose and lift it over the adapter.
Use only one "thicker" distance (spacer) between the engine block and the rim (gear)
Replace the original Toyota JZ starter
The flywheel should be tightened with the same torque as the Toyota OEM
The required adjustment of the slave pump (change of the pump to a smaller one - piston diameter or shortening of the pump stroke)

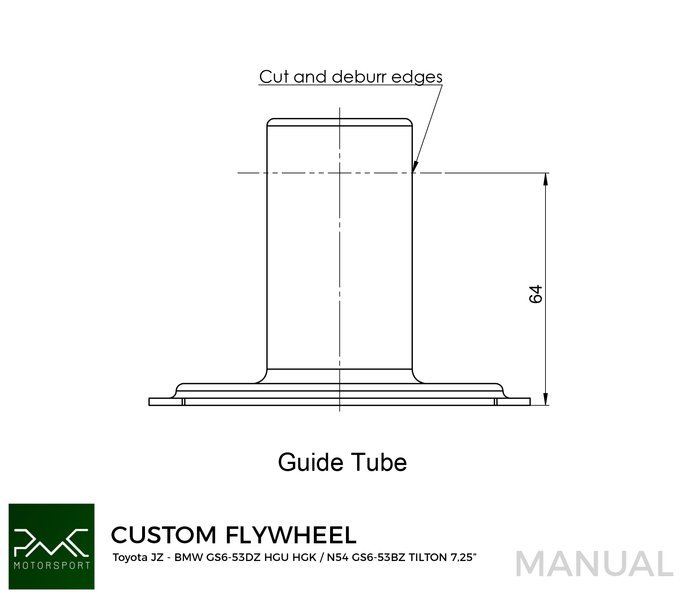

Requires BMW OEM 23 11 7 501 714 guide tube shortening
Engine:
Toyota JZ 1JZ 2JZ
Gearbox:
BMW E39 530D M57 GS5-39DZ 5-SPEED DIESEL
BMW E46 M3 6-speed Getrag 420 TBAI
BMW E46 330D M57 GS5-39DZ 5-SPEED DIESEL
BMW E39 525D M57 GS5-39DZ 5-SPEED DIESEL
Adapter Kit Type:
Motorsport
Spline:
28x35-10N
Clutch Set:
Tilton OT-II Cerametallic Pressure Plate 7.25" 66-302HGG Dial disc
Flywheel Type:
Ultralight Race 184mm / 7.25"
Spline Count:
10
Product sales codes included:
F0BMW-JZ
K0M50-TS-JZ
TILTON 66-302
PMC3P-M3
Set with Clutch:
Yes
----------------
